Product Description

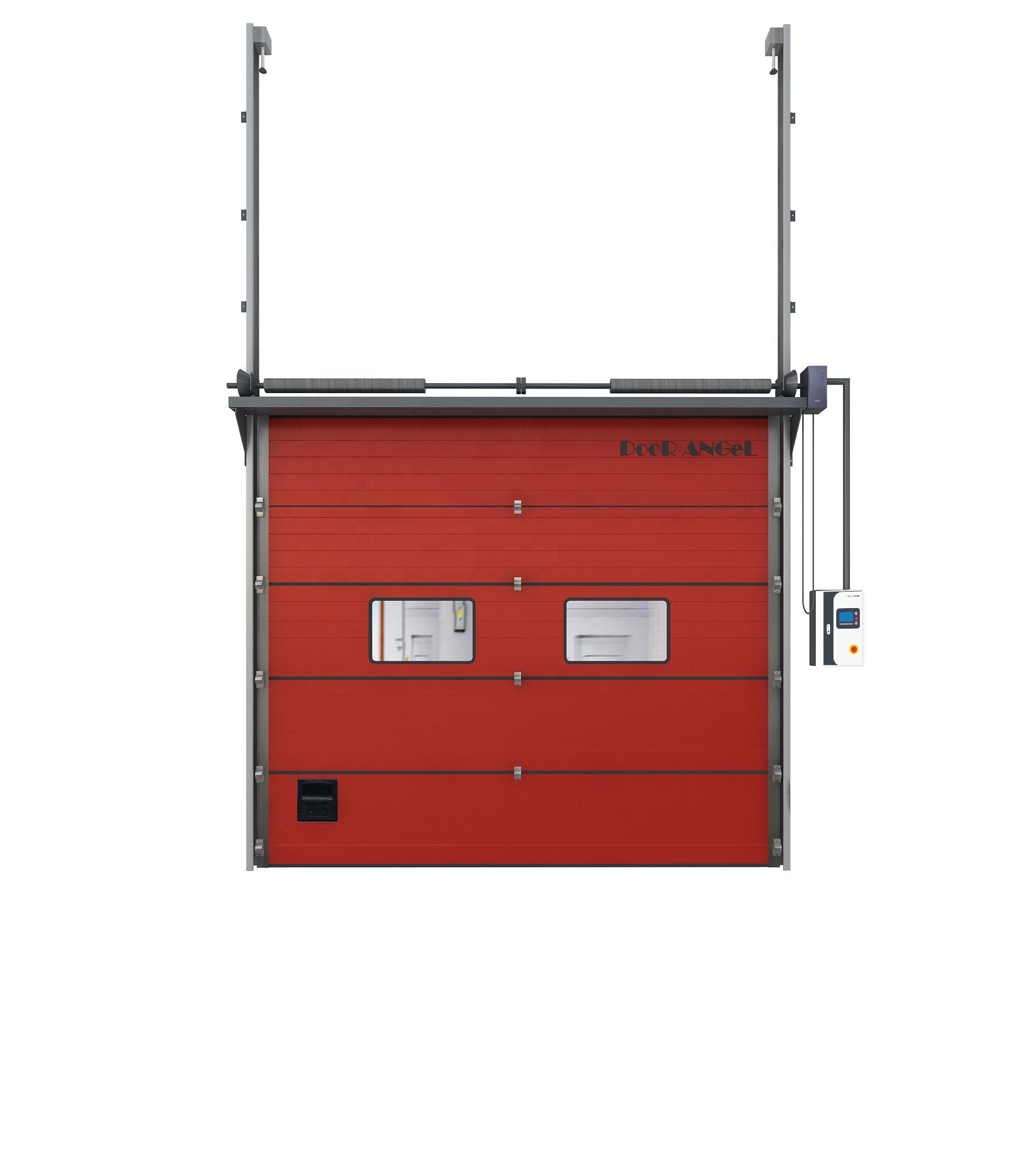

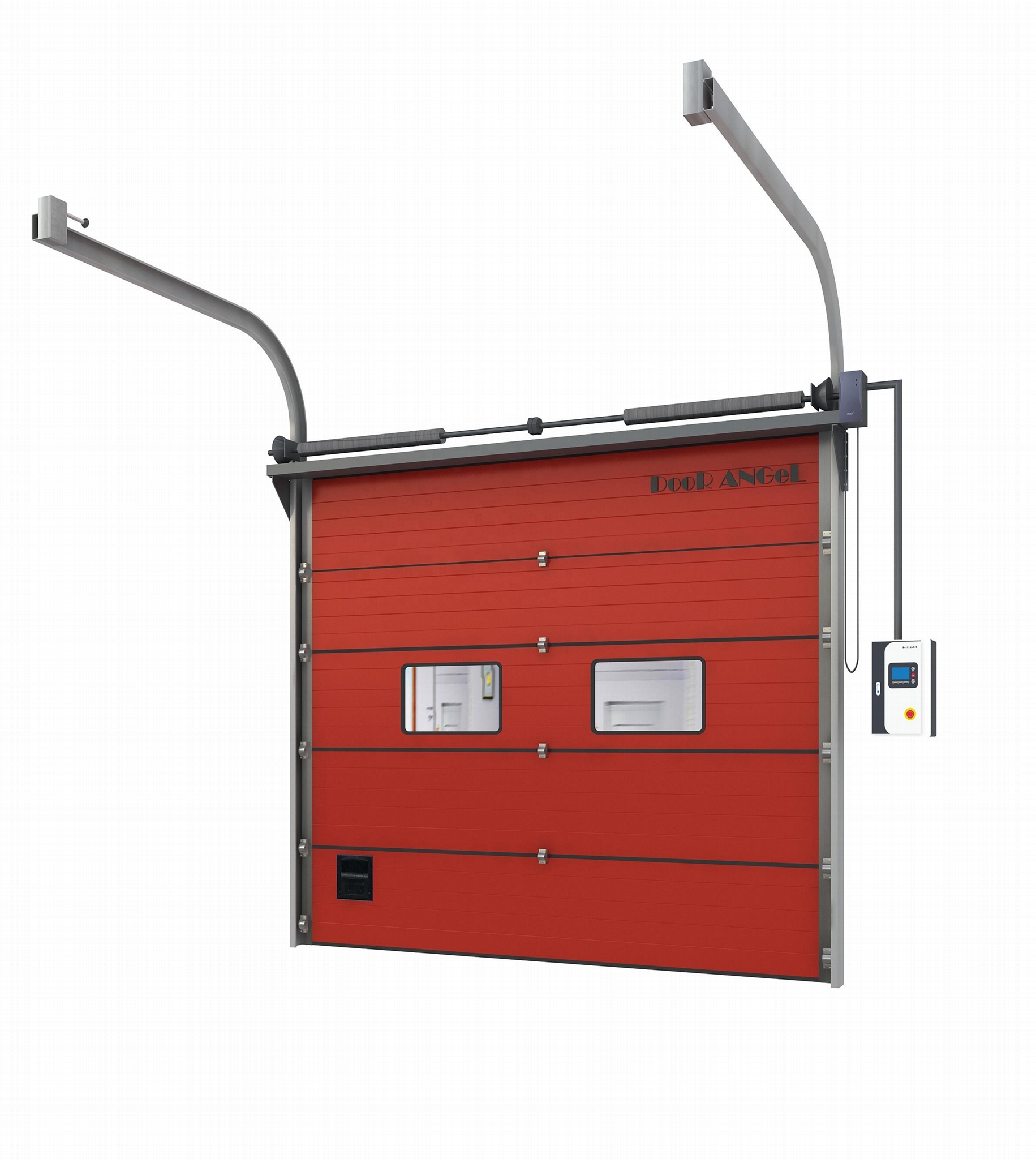

Sectional doors open vertically, creating free space in front of and behind the door. The door sections are stored flat underneath the ceiling, vertically above the opening or along the roof. Industrial sectional door is a type of industrial door being widely applied to many factories and large buildings. It could be also used as garage door.
Features Of Automatic Fire Resistant Insulated Metal Gate Passage Entrance Exterior door
*aluminum/steel door panels results in a solidly constructed door for years of dependable service
*Standard steel doors available in sizes up to 32'2" (9804 mm) in width; 24'1" (7341 mm) in height
*Insulated steel doors available in up to 30'2" (9195 mm) in width; 24'1" (7341 mm) in height
*Heavy-duty track and hardware are fabricated of high-quality galvanized steel and engineered for precise, trouble-free
performance
*Flexible PVC bottom weather seal lessens conductivity of heat and cold, minimizes air and water penetration, and accommodates
irregular floor conditions
*Sectional overhead doors panel's thickness available from 40-100mm
*Baked-on, polyester paint finish eliminates field painting and provides long-lasting protection against the elements
*Superior panel strength and well-engineered track are designed to meet many wind load requirements and codes
|
Mode
|
Automatic Fire Resistant Insulated Metal Gate Passage Entrance Exterior door
|
|
Door Panel
|
Galvanized Steel Plate
|
|
Door Filler
|
Polyurethane foaming or without styrofoam insulation
|
|
Guide Rail
|
Galvanized Steel,Noise Level <= 60db
|
|
Door Panel Thickness
|
40mm-80mm(optional)
|
|
Operation Temperature
|
From -40Degrees to 50 Degrees
|
|
Drive Voltage
|
220V 50HZ
|
|
Components
|
Motor,airbag,spring brake device,cable break device,pulleys,control box, brackets
|
|
Technical Data:
|
|
Climbing Mode
|
Standard Lifing, High Lifting, Vertical Lifing
|
|
Door Configuration:
|
With Clear window or small sectional door or without window/door
|
|
Door Panel Size
|
Max 12000MM
|
|
Opening Size
|
Max 8000MM
|
|
Heat Transfer
|
K=0.4-0.5W/㎡K
|
|
Opening Speed:
|
about 130mm/S
|
|
Operation Counts
|
Max 100times /24 hours
|
|
Balance System
|
External torsion spring balance system, the working life of the torsion spring reaches 400000-800000s working cycle
|
|
Opening Type:
|
Button,rope control,remote control,Geomagnetic Control,Photocell Control, Radar Control
|
|
Package:
|
Caron,Wooden Box
|
|
MOQ and Lead Time:
|
1set,3days
|
